- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Server Motherboard

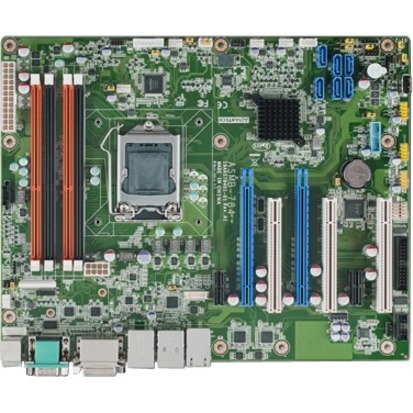

LGA 1150 Intel® Xeon® E3 V3 ATX Server Board with 2 PCIe x16 slots (x8 link) or 1 PCIe x16 slot (x16 link), 3 PCI, USB 3.0, PCIe Gen III, Quad/Dual LANs
- Supports LGA 1150 Intel® Xeon® E3-1200 v3 and 4th Generation Core i7/i5/i3 processors
- One Gen 3.0 PCIe x16 link or two PCIe x16 slots with x8 link, two PCIe x1 and three PCI slots
- DDR3 1600 MHz ECC/Non-ECC UDIMM up to 32GB
- Rackmount optimized placement with positive air flow design
- Support Intel vPro, AMT 9.0, IPMI (optional) and Embedded sofeware APIs and utilities
- Utilities: Monitoring
- Software APIs : SMBus / H/W Monitor / Watchdog
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C226
- Total Processor Supported
- 1
- Processor Socket
- Socket H3 LGA-1150
- Processor Supported
- Xeon
- Core i7
- Core i5
- Core i3
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 32 GB
- Memory Technology
- DDR3 SDRAM
- Memory Speed Supported
- 1600 MHz
- 1333 MHz
- 1066 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 10
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.0 Ports
- 2
- VGA
- Yes
- DVI
- Yes
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Total Number of Onboard USB Ports
- 9
- Number of Onboard USB 3.0 Ports
- 2
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- ATX
- Width
- 9.6"
- Depth
- 12"
- Weight (Approximate)
- 1.76 lb
- Miscellaneous
- Package Contents
- ASMB-784 Server Motherboard
- 1 x Driver CD
- 1 x Startup Manual
- 2 x SATA Data Cables
- 2 x SATA Power Cables
- 1 x I/O Shield
