- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Series
- C5242e
- Product Type
- Solid State Drive

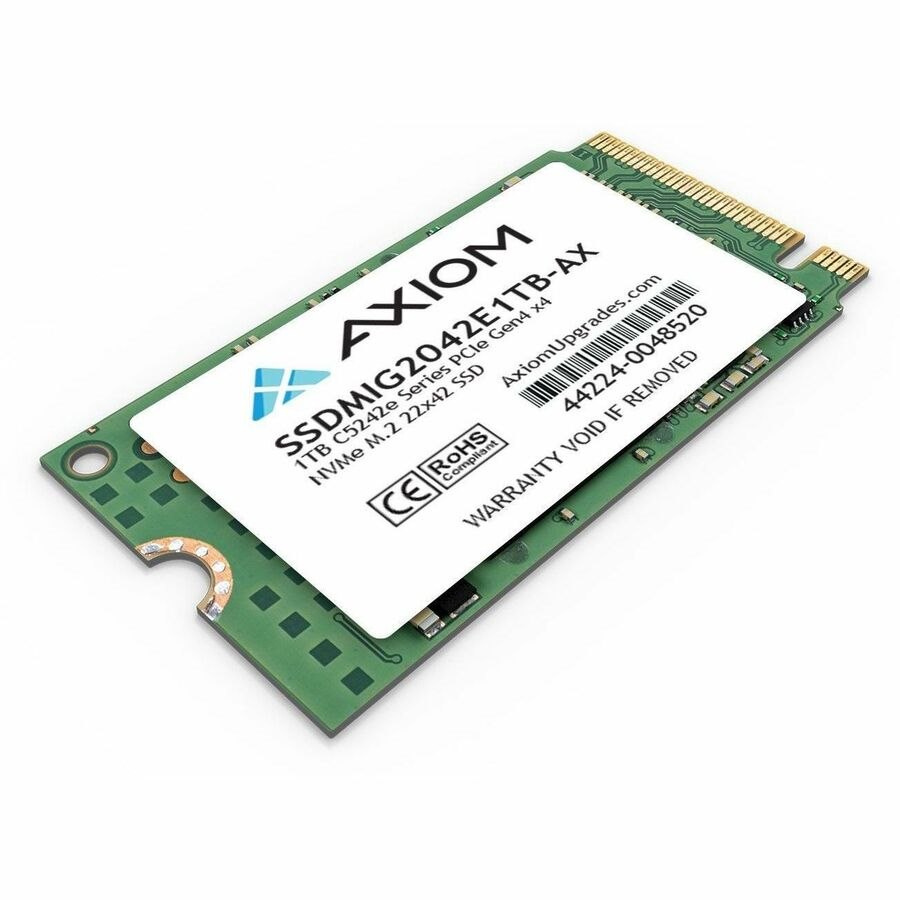

The Axiom High Speed C5242e Series features the latest PCIe Gen4 x4 controller combined with and the TCG OPAL 2.0 data encryption to deliver secure data at blazing speeds of up to 5,200/4,775MB per second read/write. The PCIe Gen4 x4 SSDs is up to 40% faster in read performance than previous PCIe Gen3 SSDs. The C5242e takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact 22x42mm M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 250GB, 500GB, 1TB and 2TB capacities.
Key Features & Benefits:- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Storage Capacity
- 1 TB
- Features
- S.M.A.R.T
- SLC Cache
- Wear Leveling
- Garbage Collection
- 3D QLC NAND Technology
- LDPC ECC Technology
- Encryption Standard
- 256-bit AES
- Drive Performance
- Random 4KB Read
- 195000IOPS
- Random 4KB Write
- 289000IOPS
- Endurance (DWPD)
- 0.446
- Endurance (TBW)
- 500 TB
- Maximum Sequential Read
- 5.08 GB/s
- Maximum Sequential Write
- 4.27 GB/s
- Mean Time Between Failures (MTBF)
- 171.1 Year
- Interfaces/Ports
- Drive Interface
- PCI Express NVMe
- Drive Interface Standard
- PCI Express NVMe 4.0 x4
- Power Description
- Standby Power Consumption
- 4.75 W
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- M.2 2242
- Width
- 0.9"
- Length
- 1.7"
- Weight (Approximate)
- 0.27 oz
- Miscellaneous
- Compatibility
Compatible Systems:
- Dell - Precision 3260 Compact
- Lenovo - IdeaCentre 5 14IMB05
- Lenovo - IdeaPad 3 15IAU7
- Lenovo - Lenovo V15 G4 ABP
- Lenovo - ThinkBook 14 G6 ABP
- Lenovo - ThinkBook 14 G6 IRL
- Lenovo - ThinkBook 14 G7 IML
- Lenovo - ThinkBook 14s Yoga G3 IRU
- Lenovo - ThinkBook 16 G6 ABP
- Lenovo - ThinkBook 16 G7 ARP
- Lenovo - ThinkBook 16p G4 IRH
- Lenovo - ThinkCentre M70s
- Lenovo - ThinkCentre M70s Gen 4
- Lenovo - ThinkCentre M70t Gen 3
- Lenovo - ThinkCentre M70t Gen 4
- Lenovo - ThinkCentre M75n
- Lenovo - ThinkPad E14 Gen 3 (AMD)
- Lenovo - ThinkPad E14 Gen 5 (AMD)
- Lenovo - ThinkPad E14 Gen 5 (Intel)
- Lenovo - ThinkPad E14 Gen 6 (Intel)
- Lenovo - ThinkPad E16 Gen 1 (Intel)
- Lenovo - ThinkPad E16 Gen 2 (AMD)
- Lenovo - ThinkPad E16 Gen 2 (Intel)
- Lenovo - ThinkPad L13 Yoga Gen 2 (AMD)
- Lenovo - ThinkPad L13 Yoga Gen 2 (Intel)
- Lenovo - ThinkPad L13 Yoga Gen 3 (AMD)
- Lenovo - ThinkPad L13 Yoga Gen 3 (Intel)
- Lenovo - ThinkPad L13 Yoga Gen 4 (AMD)
- Lenovo - ThinkPad L13 Yoga Gen 4 (Intel)
- Lenovo - ThinkPad L14 Gen 2 (AMD)
- Lenovo - ThinkPad L14 Gen 3 (Intel)
- Lenovo - ThinkPad L14 Gen 4 (AMD)
- Lenovo - ThinkPad L14 Gen 4 (Intel)
- Lenovo - ThinkPad L15 Gen 3 (AMD)
- Lenovo - ThinkPad L15 Gen 3 (Intel)
- Lenovo - ThinkPad L15 Gen 4 (Intel)
- Lenovo - V Series V15 G3 ABA
- Device Supported
- Desktop PC
- Notebook
- Workstation
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
