• General Information
• • Manufacturer
  • The Bosch Group
  • Manufacturer Website Address
  • http://www.bosch.com
  • Brand Name
  • RTS
  • Product Line
  • RadioCom
  • Product Type
  • Audio Transmitter

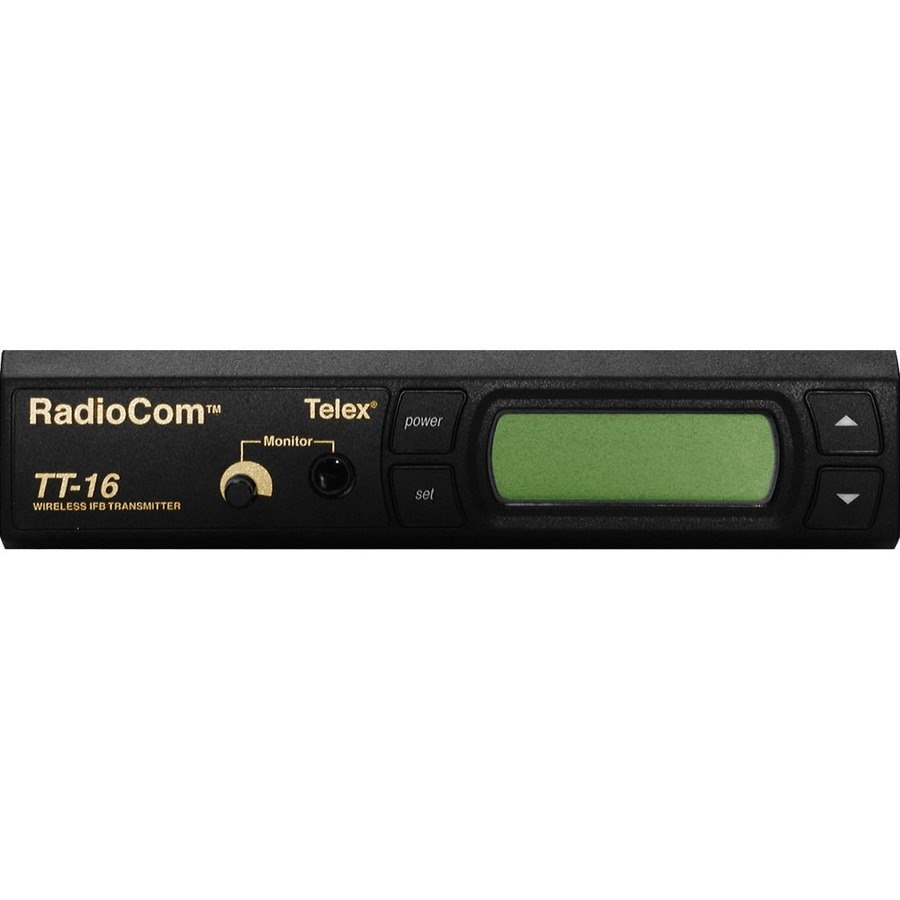

The RadioCom TT-16 base station transmitter and the TR-16 beltpack talent receiver is a 16-channel synthesized wireless IFB system. The system is designed to provide a convenient wireless link to on-air talent in the studio or in the field at remote locations. Operating in the low band VHF 64-68MHz range (TV Ch 3 and 4), the units operate reliably at distances of over 350 feet. In unoccupied television channels, up to five TT-16 transmitters will operate simultaneously within the same location.

Features

• Wireless link from intercom system for cueing, talent IFB and more.
• 16 channel synthesized transmitter. Up to five (5) frequencies compatible for simultaneous use.
• Backlit LCD with control buttons.
• Accepts standard RTS-TW, Audiocom or Clear-Com intercom level inputs.
• Balanced XLR input connector with level control and viewable meter.
• Unbalanced ¼-inch line level input connector with level control and viewable meter.
• Hi/Low Selectable RF output power.
• Enhanced Dynamic Range (E.D.R.) For improved dynamic audio.
• Front panel ¼-inch monitor jack with level control.
• 16 Channel tunability.
• Backlit LCD with control buttons.
• High frequency boost compensates for high frequency loss when used with long acoustic tubes.
• Accepts standard 3.5mm mini stereo/mono ear pieces.
• Runs on two (2) standard "AA" batteries. Alkaline batteries provide up to 20 hours of continuous use.
