- General Information
- Manufacturer
- Gefen, Inc
- Manufacturer Website Address
- http://www.gefen.com
- Brand Name
- Gefen
- Product Type
- Video Extender Receiver
Extend DVI, USB 2.0, RS-232 and Analog Audio up to 6,600 feet (2000 meters)

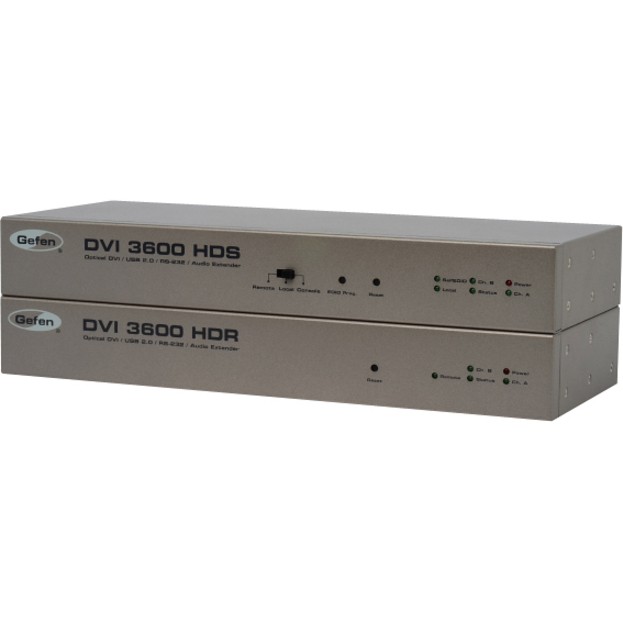

The DVI 3600HD allows you to operate a single DVI-compliant computer from two workstations, by extending DVI, USB 2.0, analog audio, and RS-232 from the computer to the remote workstation. USB peripherals can be placed at either of the two locations, by the Sender or Receiver unit.- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 6600 ft
- Video
- Graphics Modes
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- DVI In
- Yes
- DVI Out
- Yes
- USB
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of USB Ports
- 7
- Number of DVI Inputs
- 1
- Number of DVI Outputs
- 1
- Number of LC Ports
- 8
- Media & Performance
- Media Type Supported
- Optical Fiber
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Receiver Height
- 1.60"
- Receiver Width
- 12.40"
- Receiver Depth
- 5"
- Form Factor
- Rack-mountable
- Miscellaneous
- Package Contents
- DVI 3600HD Optical DVI/ USB 2.0 / RS-232/ Audio Extender
- 1 x 6 ft. DVI-DL Cable
- 1 x 6 ft. DB9 RS-232 Cable
- 1 x 6 ft. USB Cable
- 2 x 12V/3A Power Supplies
- 2 x AC Power Cords
- 1 x Set of Rack Ears
- 1 x Quick-Start Guide
