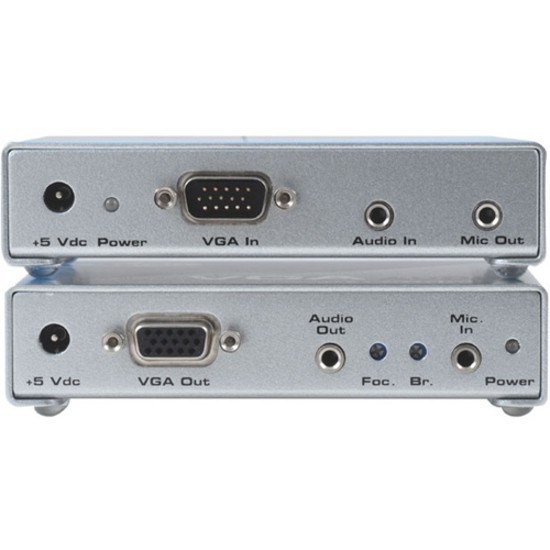

Extends VGA and analog L/R audio over a single CAT-5 cable.
The VGA Extender with L/R Audio extends a VGA computer video and analog L/R audio up to 150 feet over just one CAT5 cable. The Sender hooks up to the computer and the Receiver connects to the remotely extended VGA display and control devices such as keyboard, mouse, and audio devices.
By choosing widely available CAT5e cable for extension, Gefen has made installation simple and flexible. The CAT5e cable can be tucked under carpet or run above a ceiling.
- General Information
- Manufacturer
- Gefen, Inc
- Manufacturer Website Address
- http://www.gefen.com
- Brand Name
- Gefen
- Product Type
- Video Extender Transmitter/Receiver
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Video
- Graphics Modes
- VGA
- UXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- VGA In
- Yes
- VGA Out
- Yes
- Microphone
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of VGA Inputs
- 1
- Number of VGA Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 5e
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Transmitter Height
- 1.13"
- Transmitter Width
- 4"
- Transmitter Depth
- 3"
- Transmitter Weight (Approximate)
- 3 lb
- Miscellaneous
- Package Contents
- VGA Audio Sender Unit
- VGA Audio Receiver Unit
- 1 x 6ft VGA cable
- 1 x 6ft Audio cable
- 2 x 5V DC Transformer
- User's Manual
- Country of Origin
- United States
- Environmentally Friendly
- Yes
