Powerful 24-port and 48-port Gigabit switches with 4 dedicated 10G SFP+ uplinks and Remote/Cloud Management option - Select your new network engine!
As a leading provider of network equipment for businesses, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation.
Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24- port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA. |
Highlights
The NETGEAR Gigabit Ethernet Switches with 4 SFP+ Ports with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.
- General Information
- Manufacturer
- Netgear, Inc
- Manufacturer Website Address
- http://www.netgear.com
- Brand Name
- Netgear
- Product Line
- Business
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- DHCP Snooping
- Remote/Cloud Management
- Energy Efficient
- Loop Protection
- Zero-Touch Provisioning (ZTP)
- Dynamic ARP Inspection
- VLAN Segmentation
- Access Control List
- Remote Monitoring (RMON)
- Broadcast Storm Control
- DHCP Relay
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x 10/100/ 1000BASE-T Gigabit Ethernet RJ-45 Network Port
- 4 x 1000/10GBASE-X Gigabit Ethernet SFP+ Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.11ac
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- Management & Protocols
- Manageable
- Yes
- Switch Management Type
- Smart Managed
- Reliability
- MTBF
- 382249 Hour
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Number of Power Supplies Installed
- 1
- Power Consumption
- 26 W
- Physical Characteristics
- Form Factor
- Desktop
- Rack-mountable
- Table Top
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 10.1"
- Weight (Approximate)
- 6.79 lb
- Miscellaneous
- Package Contents

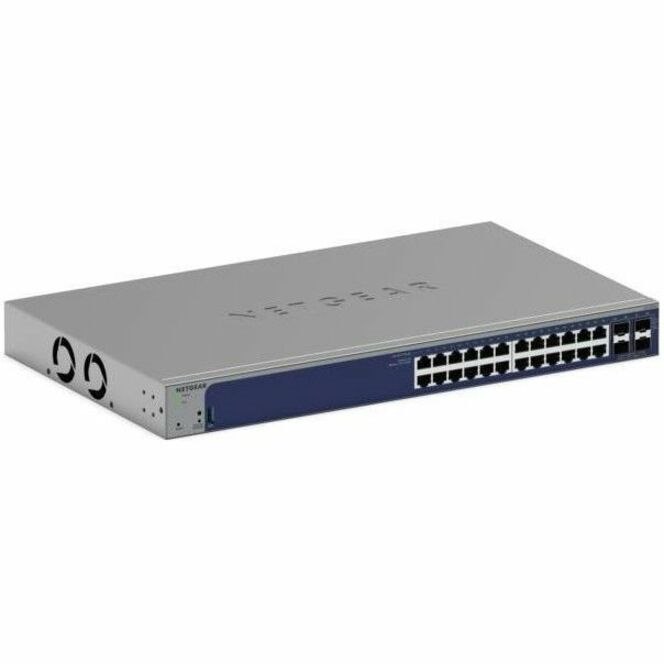

- Business GS728TXv3 Ethernet Switch
- AC Power cord with C13 connector
- Brackets and screws for rack mounting
- Rubber footpads for tabletop installation
- Rubber protection caps, which are already installed in the SFP sockets Installation guide
- Application/Usage
- Network
- Business
- Education
- Retail
- Security Camera
- IoT Devices
- Router
- VoIP Phone
- Wireless Access Point
- Surveillance
- Server
- Security
- Certifications & Standards
Electromagnetic Emissions and Immunity
- CE
- FCC Class A
- RCM
- ICES Class A
- VCCI
- KC
- BSMI
- UKCA
Safety
- CB
- CE
- CSA
- RCM
- KC
- BSMI
