- General Information
- Manufacturer
- Shuttle, Inc
- Manufacturer Website Address
- http://www.us.shuttle.com
- Brand Name
- Shuttle
- Product Line
- XPC slim
- Product Type
- Barebone System
FANLESS 1-LITRE PC SUITABLE FOR 24/7 OPERATION

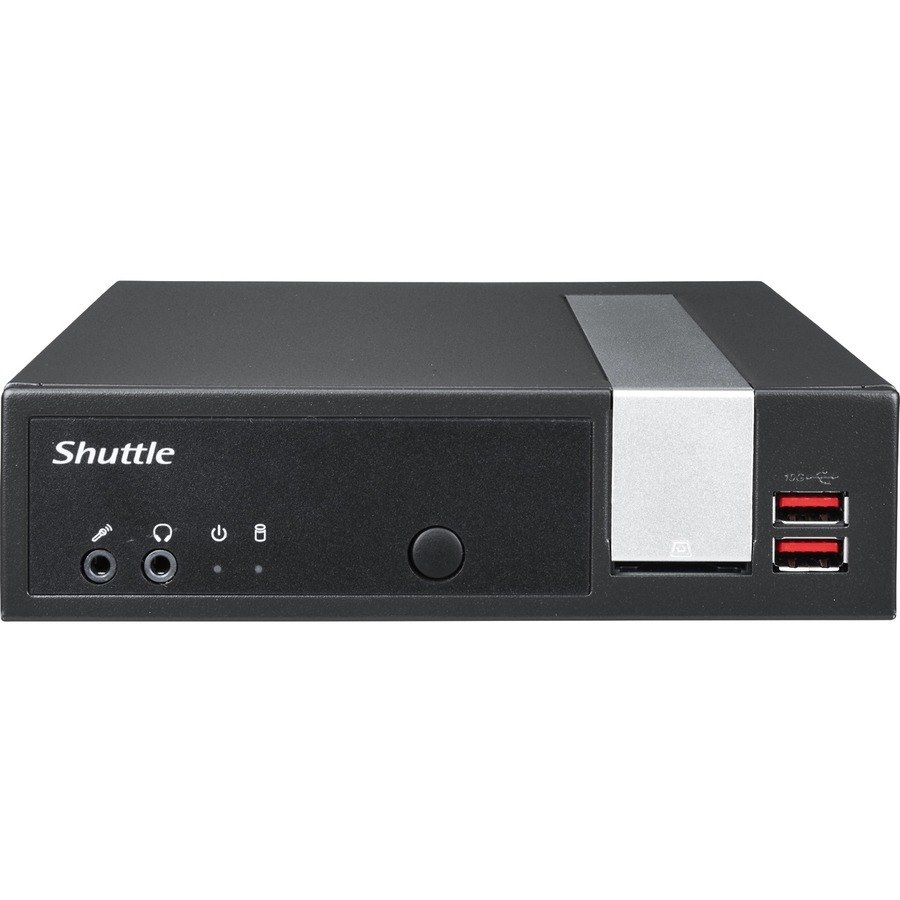

The Shuttle XPC slim Barebone DL20N Series is the successor to Shuttle's DL10J. These fanless Slim PC barebones with an energy-efficient 10 nm Intel "Jasper Lake" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. The optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful 11th gen. Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD or M.2 drive, these Slim-PCs works virtually noiseless.
- Processor
- Processor Socket
- Socket BGA-1338
- Processor Manufacturer
- Intel
- Processor Type
- Celeron
- Processor Model
- N4505
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 2 GHz
- Maximum Turbo Speed
- 2.90 GHz
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 16 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2933/PC4-23466
- Total Number of Memory Slots
- 2.0
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics
- Graphics Memory Technology
- DDR4 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Total Number of Expansion Slots
- 2.0
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 7
- Number of USB 3.2 Gen 1 Ports
- 2
- Number of USB 3.2 Gen 2 Ports
- 2
- Number of Onboard USB 2.0 Ports
- 1
- Number of VGA Ports
- 1
- Operating System
- Operating System Supported
- Windows 10 x64
- Windows 11 x64
- Linux
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 40 W
- Physical Characteristics
- Form Factor
- Slim PC
- Height
- 1.7"
- Width
- 6.5"
- Depth
- 7.5"
- Weight (Approximate)
- 1.76 lb
- Miscellaneous
- Application/Usage
- Business
- Energy Star
- Yes
