- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Video Extender Transmitter/Receiver
4K@120Hz HDMI Extender, Easily extends HDMI 4K@120Hz signals up to 132ft (40M) over a single Cat6/7 networking cable with IR, Nearly zero latency, HDR10, HDCP2.3, EDID, Bi-directional IR, Metal Housing
Features
Easily extends HDMI signals to 132ft (40m) over Cat6/7 cabling and IR Bi-directional remote-control HDMI device. Supports Ultra HD 4K@120Hz resolution for a smooth and immersive viewing experience
4K 120Hz Resolution
Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, HDR10, HDCP 2.3, YUV 4:4:4, 36-bit color depth for crystal-clear image quality
DSC Function
Display Stream Compression (DSC) is enabling increased display resolutions and frame rates over existing physical interfaces and make devices smaller and lighter. Compliant with DSC 1.2a
EDID Slide Switch
Provides STD and TV modes for optimal image quality and excellent compatibility with a wide range of devices
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 131.23 ft
- Maximum Refresh Rate
- 120 Hz
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 1
- Remote (IR) Input
- 2
- Remote (IR) Output
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 7
- Power Description
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Product Color
- Black
- Transmitter Height
- 3.23"
- Transmitter Width
- 0.57"
- Transmitter Depth
- 3.27"
- Receiver Height
- 3.23"
- Receiver Width
- 0.57"
- Receiver Depth
- 3.27"
- Transmitter Weight (Approximate)
- 4.32 oz
- Receiver Weight (Approximate)
- 4.32 oz
- Miscellaneous

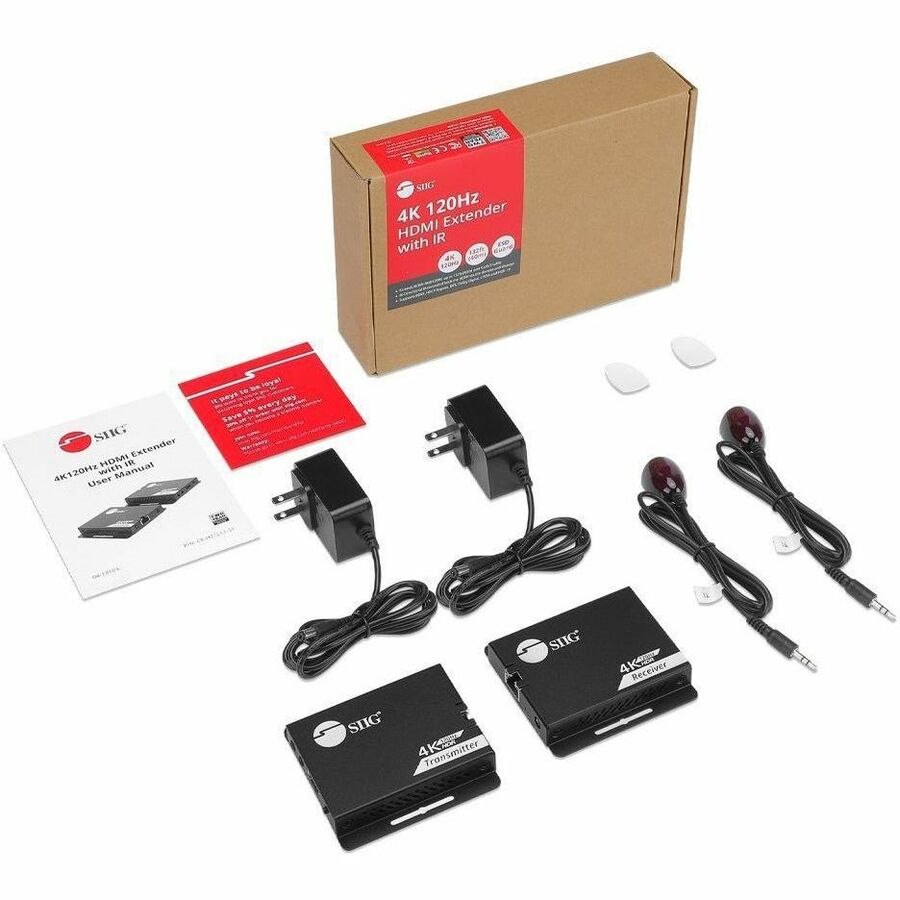

- Package Contents
- 4K120Hz HDMI Extender With IR - Up To 132ft (40M) - EDID - Nearly Zero Latency
- 1 x 3.5mm IR Emitter Extension Cable
- 1 x 3.5mm IR Receiver Extension Cable
- 2 x DC Power Adapter, 12V/1A
- 1 x User Reference Guide
- Application/Usage
- Gaming
- Notebook
- Set-top Box
- Media Player
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
